Place of Origin:
Brand Name:
LongyuanWarranty:

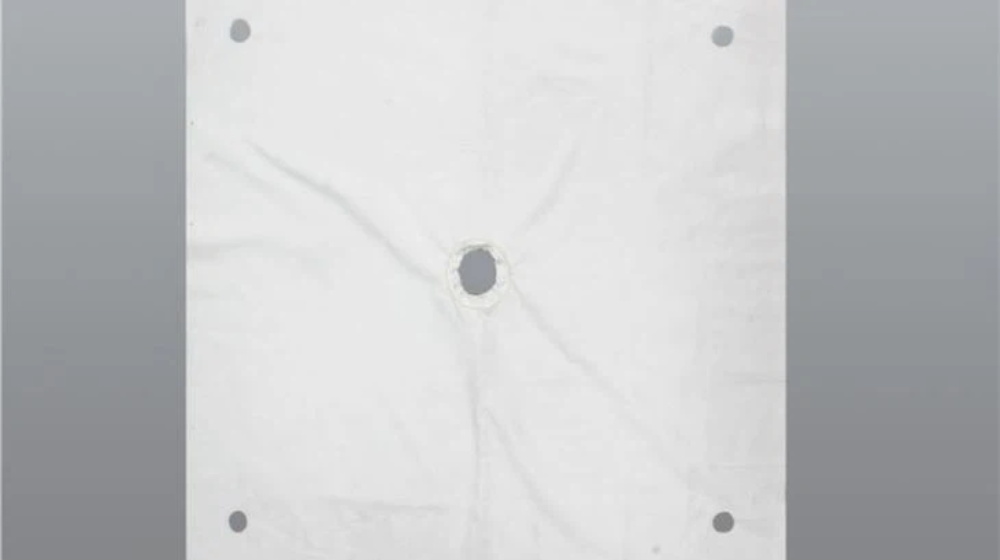

Fiber Material: Polypropylene
1.Benefits:
Fine pores
High dimensional stability
Good abrasion resistance
Stable filtration performance
Wide range of filtration rating
Efficient fabric cleaning
Usage: Filter press machine
2.Filter cloth parameters
|
Item No.
|
Material | Fabric Texture | Weight （g/㎡）±5% |
Density （PCS/10cm） |
Thickness （mm）±2% |
Rupture Strength F(N/5*20cm) |
Elongation at Break(%) | Air Permeability （L/㎡ S）±25% |
|||
| Warp±5% | Across Warp±5% | Warp±2% | Across Warp±2% | Warp | Across Warp | ||||||
| PP-1 | PP | Plain weave | 370 | 204 | 110 | 0.75 | 4166 | 2905 | 43 | 31.83 | 13.56 |
| PP-2 | PP | Plain weave | 370 | 204 | 110 | 0.75 | 4166 | 2905 | 43 | 31.83 | 5 |
| PP-3 | PP | Plain weave | 435 | 204 | 102 | 0.85 | 5585.7 | 4089.2 | 44.23 | 32.23 | 9.83 |
| PP-4 | PP | Twill | 440 | 252 | 146 | 0.9 | 5275 | 3948.25 | 38.97 | 31.8 | 45.54 |
| PP-5 | PP | Twill | 490 | 283 | 142 | 1.01 | 5928 | 4086.6 | 40.43 | 36.7 | 40.77 |
| PP-6 | PP | Twill | 540 | 311 | 134 | 1.1 | 6282.5 | 4858.25 | 18.77 | 37.2 | 27.02 |
| PP-7 | PP | Twill | 580 | 551 | 190 | 1.07 | 8330.75 | 2153.25 | 34.17 | 33.37 | 16.21 |
| PP-8 | PP | Twill | 600 | 551 | 212 | 1.07 | 8306.8 | 2562.6 | 35.17 | 41.13 | 13.51 |
| PP-9 | PP | Twill | 600 | 551 | 212 | 1.07 | 8306.8 | 2562.6 | 35.17 | 41.13 | 5 |
| PP-10 | PP | Twill | 240 | 236 | 161 | 0.55 | 3443.4 | 2237.4 | 26 | 23 | 110.25 |
| PP-11 | PP | Nonwoven fabric | 500 | 1.46 | 806 | 590 | 12.27 | 35.7 | 163.25 | ||
| PP-12 | PP | Plain weave+Twill | 580 | 378 | 235 | 1.15 | 6865.01 | 4416.75 | 40.41 | 28.73 | 13.82 |
3.Assembly method for Filter cloth
① When assembling the filter cloth, roll up one cloth sheet in direction cloth neck from two sides, fold up the two rolled up parts to the centre, push them through the middle feeding hole of the chamber plate, unroll them on the other side and bind the two cloth sheets together by means of bands. (Refer to follwing Figure: assembly sketch map of filter cloth)
② When installing the filter cloth sheet , they are usually fastened by filter clips, (in the following Figure, the material for filter cloth clip is polypropylene, when the clips made of stainless steel, the out figure will be different from the ones made from PP, the stainless steel material clips will not be showed here ).
